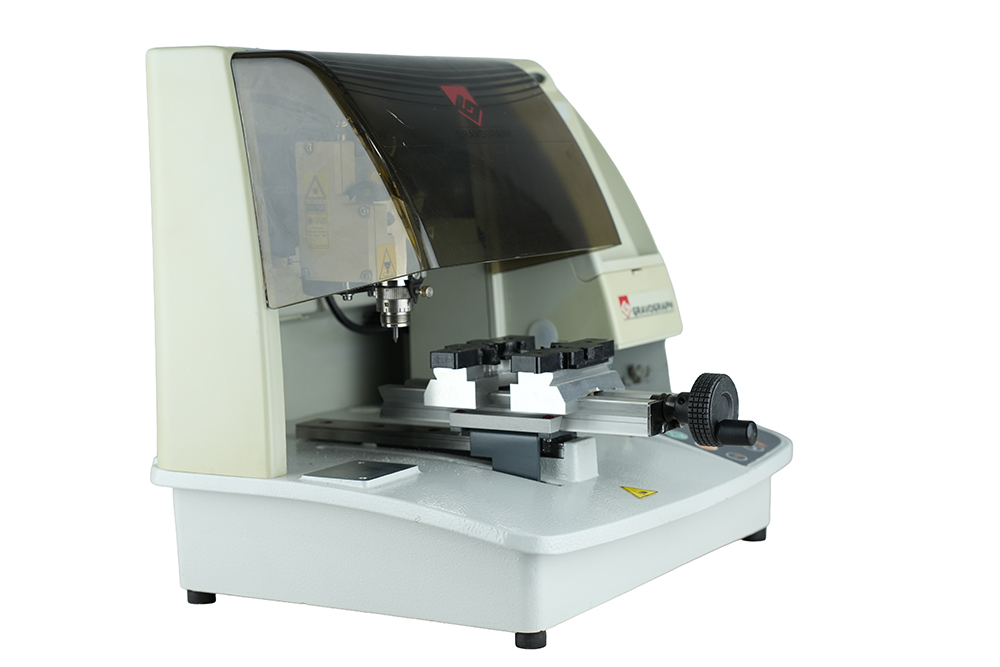

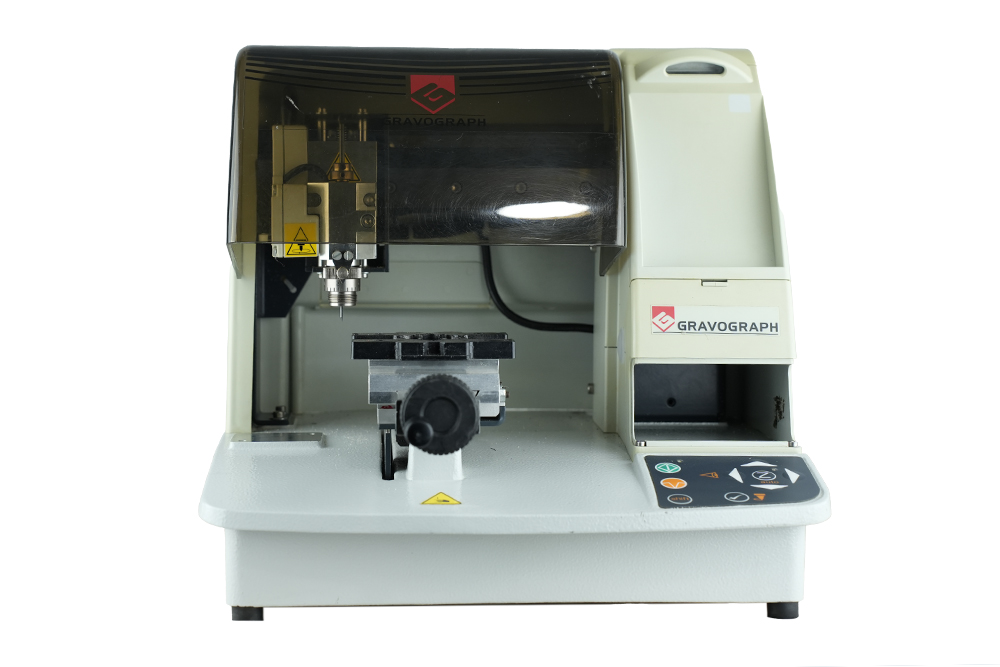

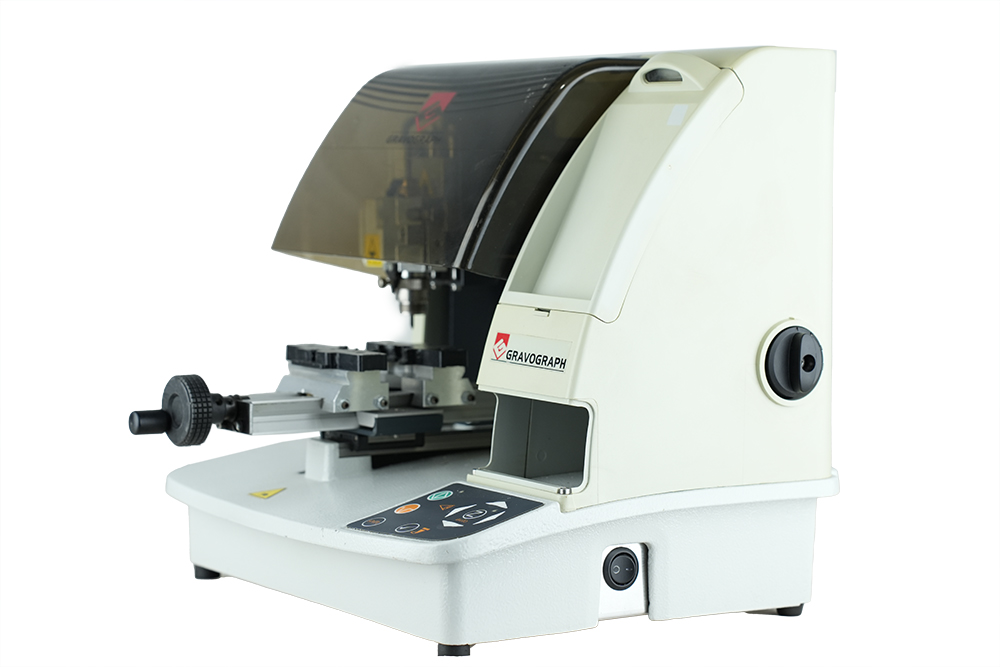

GRAVOGRAPH M20 JEWELRY ENGRAVER

GRAVOGRAPH M20 JEWELRY ENGRAVER

The Gravograph M20 is easy to store, however limited your workspace. Thanks to its user-friendly interface, even first-time engravers will get to grips with the machine in no time. Achieve high quality, error-free engraving in just a few minutes. The machine is computer-driven via Grave style Quick Click, comprehensive, user-friendly software engineered for the needs of the jewelry market (including a wealth of different fonts and advanced text management tools.)
Creativity : The customer will be able to choose from a range of over 20 fonts when composing the text in Quick Click.

Specification:
Overall machine size: 345 x 315 x 305 mm.
Weight machine: 11.5 kg.
Engraving area: 100 x 100 mm.
Z stroke : 30 mm.
Clearance (nose to bottom of vice): 40 mm.
Spindle:
– Diameter 3,17 mm hollow shaft  (GravoGraph patented innovation)
– Brushless motor 20000 rpm
– Spindle pressure adjustment
Pointn shoot function:
– Engraving area automatically defined by red laser beam pointer.

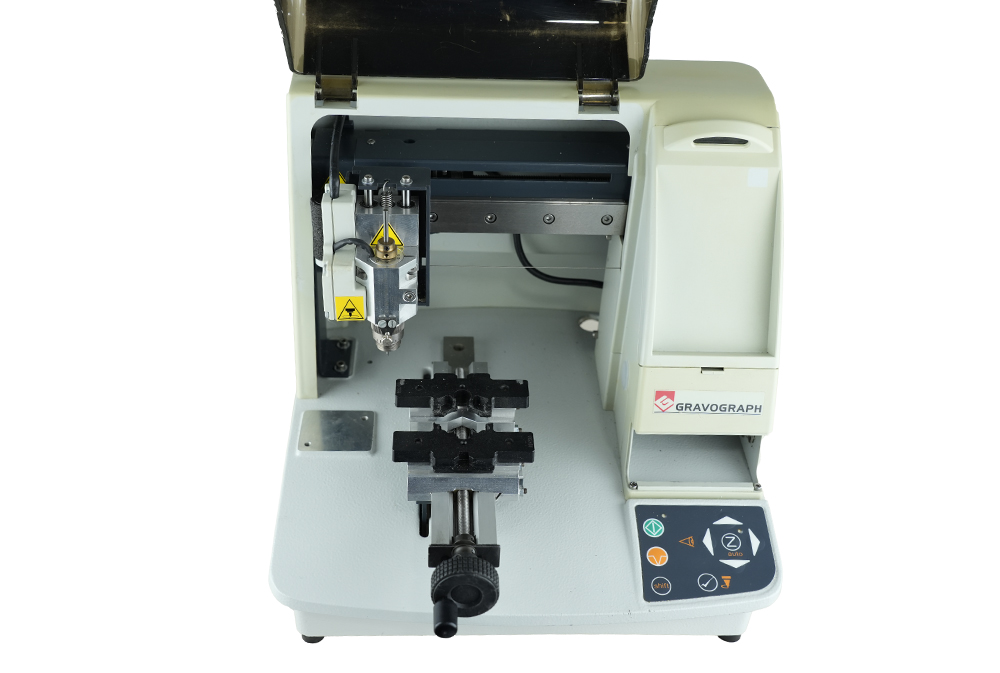

Self centering vice
Max opening capacity: 105 mm
Flatness: 0.1 mm.
Repeatability: 0.05 mm.
Pen attachment
– Maximum diameter: 20 mm
Noise level:
– Standby: LAeq = 51dB(A) (±1)
– Engraving: LAeq = 69dB(A) (±2)
– Peak in engraving: LpCpeak = 89dB(C)

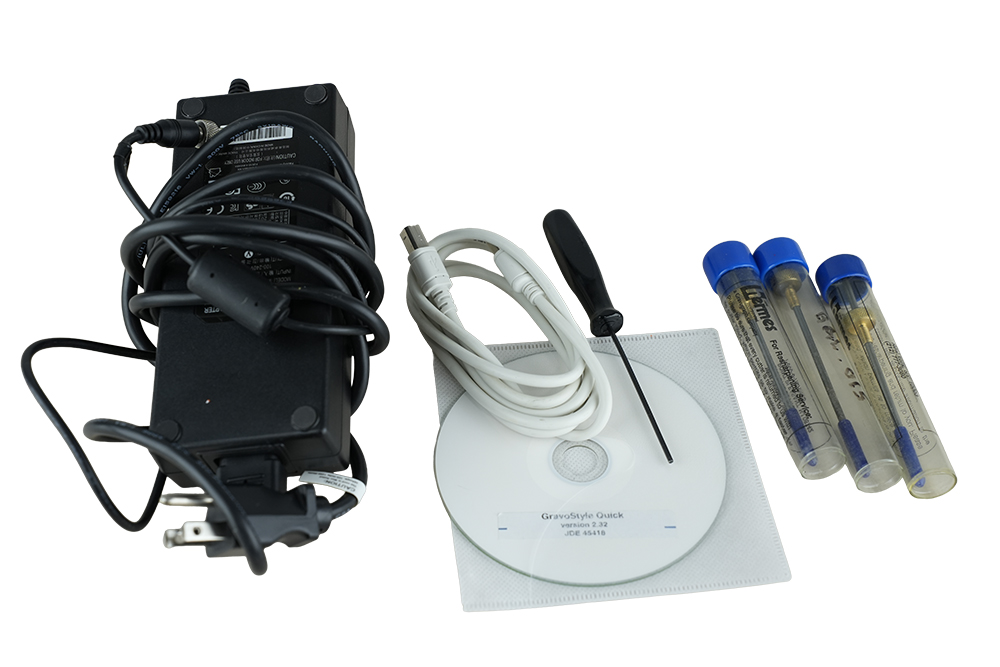

Included items power cord, Parallel->USB cable, cutters , User’s Manuals on USB flash drive, Grave style Quick Click Software
